Holley EFI 8.2" SBF Ford Hi-Ram Manifold Base - Black

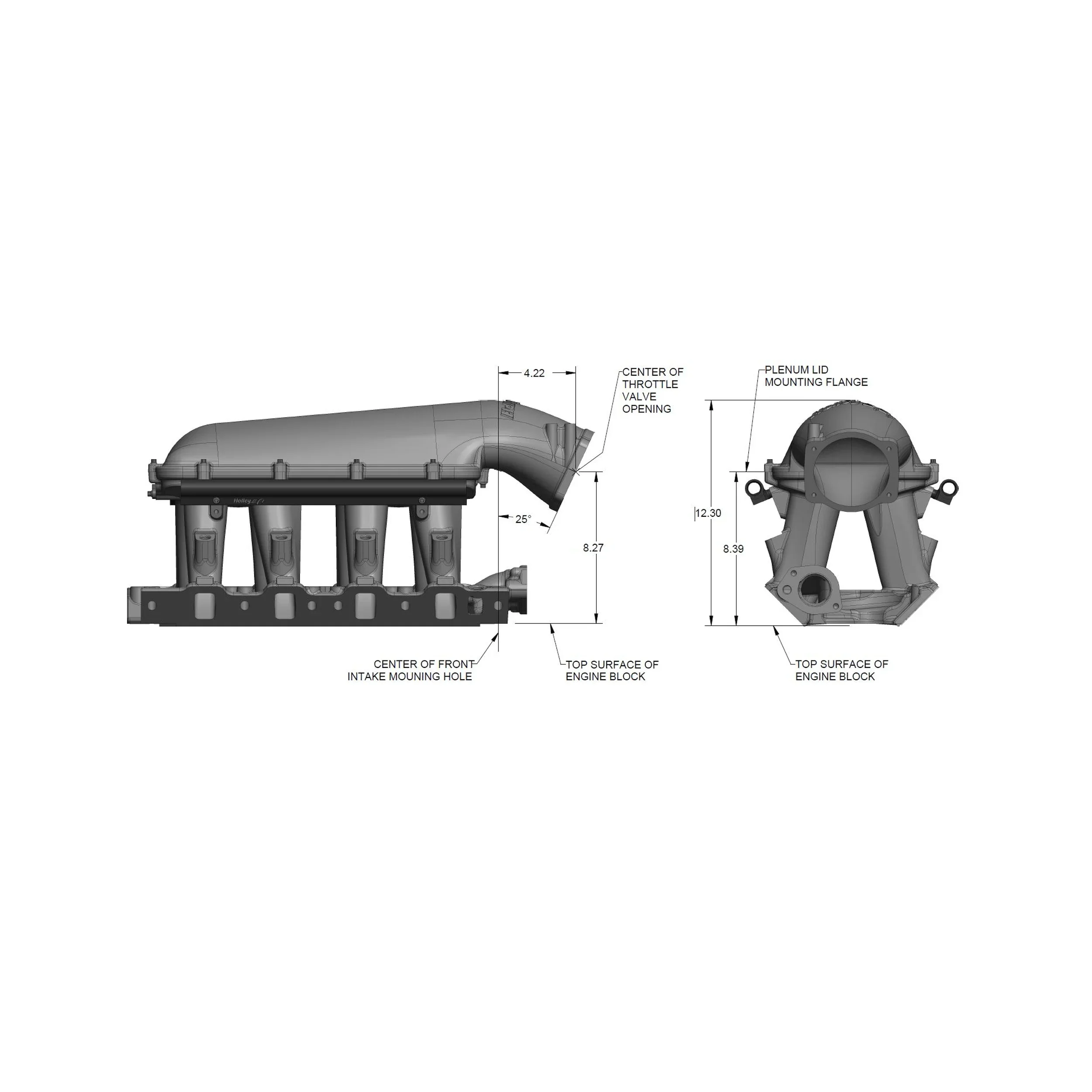

This Holley Hi-Ram intake manifold series is designed for Ford Windsor engines with an 8.2” deck height. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions.
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions.
EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Runner length and the tapered cross-section are designed to perform well for a wide range of engine configurations. Manifold is designed for an 8.2" deck height. Cast aluminum construction.
EFI Base Manifold only-Manifold tops available seperately
Features:
- EFI Base Manifold only. Black
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Manifold is designed for a 8.2" SBF deck height.
Features:
- EFI Base Manifold only. Black
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Manifold is designed for a 8.2" SBF deck height.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This Holley Hi-Ram intake manifold series is designed for Ford Windsor engines with an 8.2” deck height. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions.
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions.
EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Runner length and the tapered cross-section are designed to perform well for a wide range of engine configurations. Manifold is designed for an 8.2" deck height. Cast aluminum construction.
EFI Base Manifold only-Manifold tops available seperately
Features:
- EFI Base Manifold only. Black
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Manifold is designed for a 8.2" SBF deck height.
Features:
- EFI Base Manifold only. Black
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Manifold is designed for a 8.2" SBF deck height.
